Visual Control Panel & N9 Seamless Switcher Rental

Visual Control Panel & N9 Seamless Switcher

A professional visual control solution for concerts, conferences, exhibitions and live stage productions. The dual-screen Visual Control Panel pairs with the N9 4K seamless switcher to deliver seamless switching, multi-layer composition and real pixel-to-pixel 4K output.

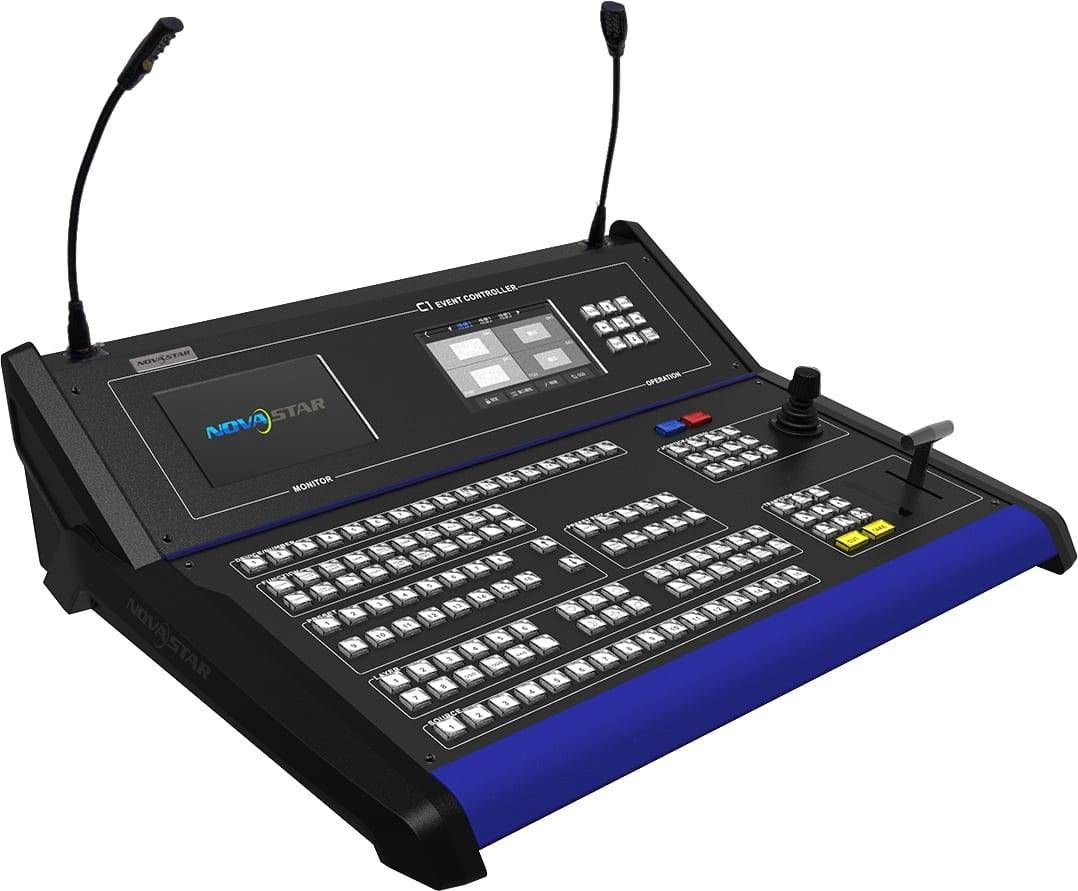

Visual Control Panel (Event Controller)

• Dual-screen design — monitor screen for real-time PVW / PGM / input source monitoring
• Touch screen plus panel buttons for layer size, layer position, input source, output resolution, layer border and input source cropping under each preset
• Premium T-bar with seamless switch — supports 1024 levels of layer transparency for fade-in / fade-out
• 32 presets, recallable at the push of a button; numerical parameter input and hotkeys
• Works with J6 and N9 seamless switchers for flexible stage operation

N9 Seamless Switcher

• Up to 4K×2K@60Hz video input and output
• 9 input sources, including two 4K source inputs
• 4 × DVI master outputs — up to 8K×1K or 4K×2K loading with a single unit
• 7 layers + OSD + 1 BKG + 1 Logo; each layer up to 4K×2K, placeable anywhere
• MVR output for monitoring all input and output; 2 × AUX output for teleprompter
• Combine with the VE7 to expand to 16 input channels (up to 5 × 4K) and 3 AUX outputs
• 32 user presets and multiple fade-in / fade-out switching effects

Control panel: 81.7 × 78.4 × 30 cm, 82 kg
